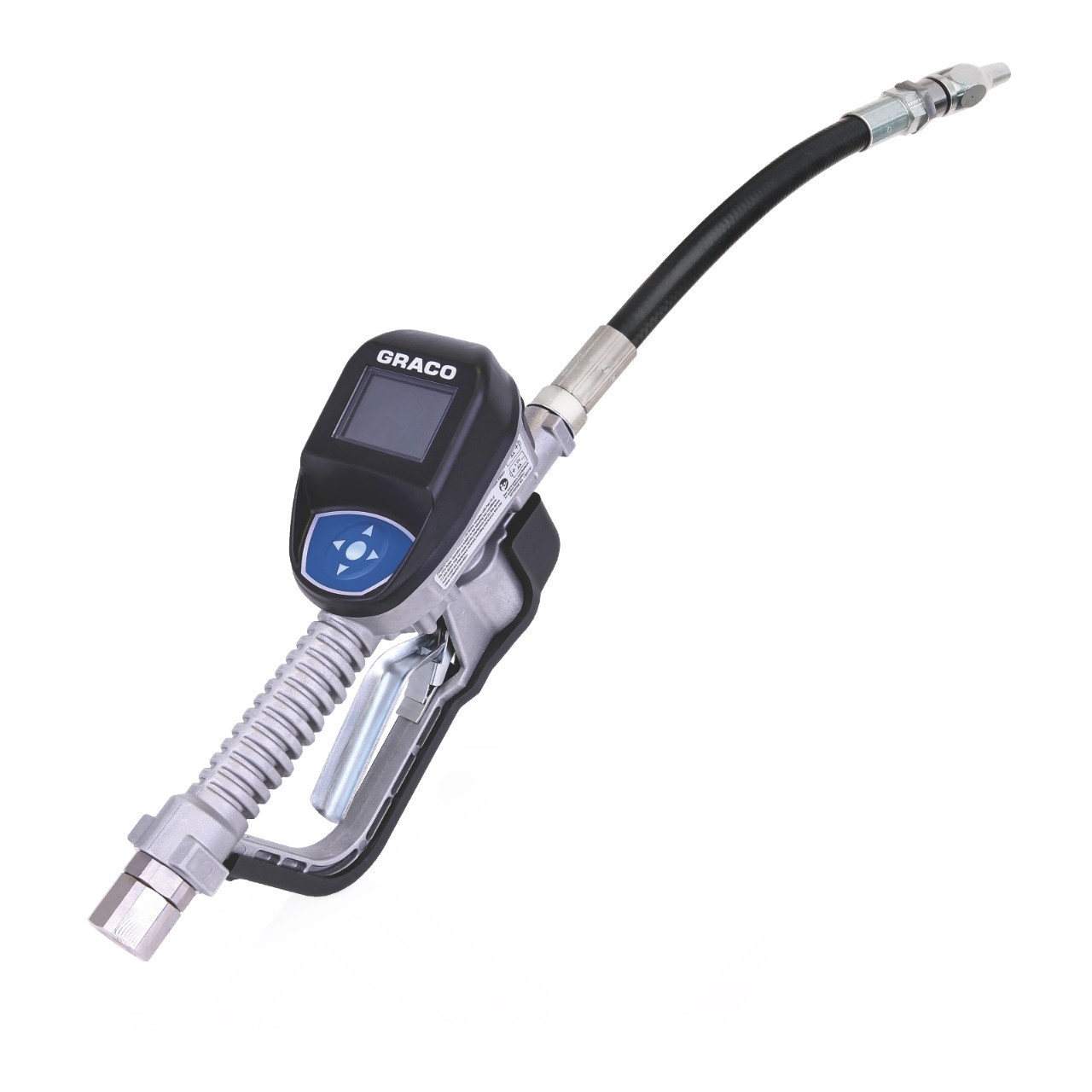

26C384 – Pulse FC Oil Meter Flexible Extension

Description SDP8 Series Electronic Preset Oil Meter – Rigid Extension – 1/2 in. (13 mm) Inlet Part Number: 26C384 Graco’s premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions. Upgradeable—SD Preset meters are compatible with PULSE FC fluid control system Large, Intuitive Display—high-contrast display for low and bright light conditions Long valve life—cartridge spool valve specifically designed to reduce wear and reduce costly down time Ergonomic—four-finger trigger and easy-to-use button pad reduce worker fatigue Reliable—time-tested Graco engineering Durable—Thick cast aluminum body allows this meter to endure harsh, heavy-duty applications Long battery life—uses 4 AA easy-to-replace batteries Technical Specifications CONVERT TO METRIC Compatible Material Oil, ATF Construction Aluminum, Stainless Steel, PBT/PC, Zinc, Nitrile Rubber, CS Dispense Type Preset Display Type Electronic Extension Type Rigid Fluid Inlet Thread Gender Female Fluid Outlet Thread Gender Female Includes Nozzle, Rigid Extension Inlet Size (in) 1/2 Inlet Thread Type NPT Maximum Flow Rate (GPM) 8 Maximum Operating Temperature (°F) 158 Maximum Recorded Dispense 9999 Maximum Storage Temperature (°F) 158 Maximum Working Pressure (MPa) 10.3 Maximum Working Pressure (psi) 1500 Meter Accuracy (%) ±0.5 Meter Technology Oval Gear Metering Gun Weight (lb) 5.3 Minimum Flow Rate (GPM) 0.25 Minimum Operating Temperature (°F) 4 Model SDP8 Nozzle Type Oil Automatic Quick-Close Outlet Thread Type Straight Thread O-Ring Boss Overall Height (in) 5.75 Overall Length (in) 13 Overall Width (in) 3.75 Product Type Meter Recommended Environment Indoor Trigger Lock Locking Trigger Protection Type Guard Type Electronic Metered Dispense Valve Unit of Measure Quart, Pint, Gallon, Liter Valve Type Metered Warranty 5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts
