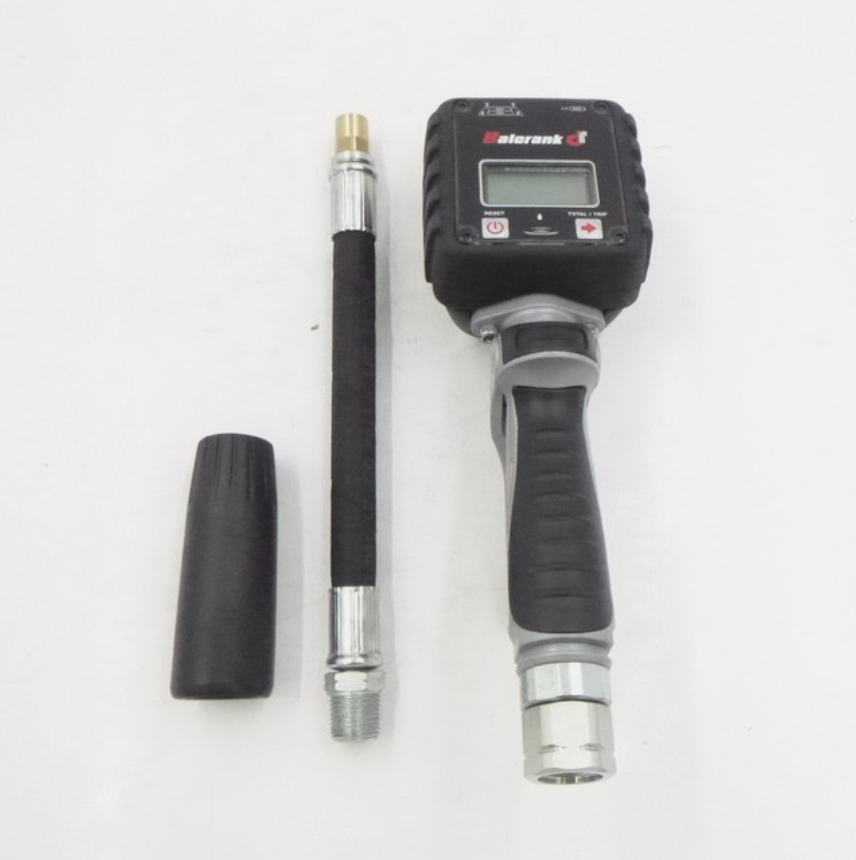

Balcrank Digital Metered Handle 3330-161

Description • Precision robotically machined aluminum die-cast fluid chamber for repeatable accuracy • Sealed battery compartment; 2 “AAA” batteries • Low power consumption with auto sleep function • Trip mode function; can operate as a simple fluid management device • Non-resettable totalizer; maintains total volume of meter from day one • Ergonomic comfort handle • Unique 1/4 turn manual tip; fast, simple • Flanged coupling; prevents leaks commonly found in competitive meters • Swivel protective cover • Affordable reparability Fluids Handled Synthetic and mineral based lubricants Gear oil Anti-freeze (Glycol) Hydraulic oil and fluids ATF Units of measure Batch: Gallons, Quarts, Pints, and Liters (in 0.01 increments) Accuracy /- 0.5% of reading (lubricating oils) Flow Range 0.26-8 gal/min (1-30 l/min) Maximum pressure 1,450 psi (100 bar) Swivel inlet 1/2″ NPT(F) Dispense Nozzle OD Auto = 0.605″ Manual 1/4 turn for OIL = 0.705″ Manual 1/4 turn for ATF= 0.315″ Verify ID of ATF fill port for compatibility Operating temperature 14º F to 140º F (-10º C to 60º C) Weight 4 lb (1.80 kg) Battery 2 x 1.5 v alkaline “AAA” Compatible Fluids Oil, transmission fluid, hydraulic fluid, and anti-freeze Wetted Materials Liquid Crystal Polymer (LCP), aluminum, Buna-N™, zinc plated steel, stainless steel, neodymium, and brass Service Bulletin SB 3095
