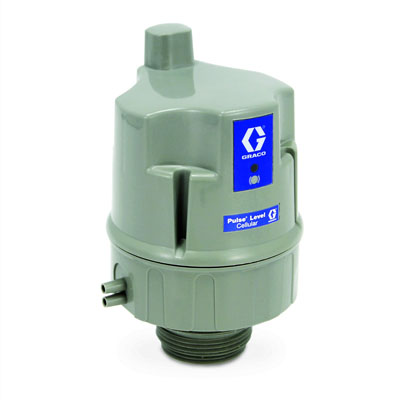

25T461 – Cellular Tank Monitor Ultrasonic

Description Pulse® Level Ultrasonic Cellular Tank Monitor Part Number: 25T461 You deliver more than fluids. You’re delivering insight. Graco Pulse Level offers highly intuitive tank-level-visibility options to help you optimize deliveries, margins and customer service. Track tank levels, capture and apply data, and assign distribution routes quickly, accurately and confidently from the industry’s leading fluid management expert. Pulse Level is compatible with 4G LTE networks, so you don’t have to worry about investing in soon-to-be-obsolete technology. Cellular Communication – No need for local network connection. Long Battery Life – 5 year battery life with replaceable C batteries Ultrasonic Sensor – Measure tanks 13 ft tall. On-Demand Reading – Ability to take reading at any time. Technical Specifications CONVERT TO METRIC Approvals FCC, CE Battery Chemistry Alkaline Battery Life (h) 5 years Battery Size C Cylindrical Tank Maximum Height (ft) 13 Cylindrical Tank Maximum Volume (gal) 999999 Fluid Level Measurement Accuracy (%) /-1 in. ( /- 2 cm) For Use With Pulse Level Maximum Ambient Temperature (°F) 140 Maximum Operating Temperature (°F) 122 Maximum RF Operating Temperature (°F) 122 Maximum Storage Temperature (°F) 140 Minimum Ambient Temperature (°F) -22 Minimum RF Operating Temperature (°F) 0 Minimum Storage Temperature (°F) -22 Model Pulse Number of Batteries 4 Obround Tank Maximum Height (ft) 13 Obround Tank Maximum Length (ft) Any Obround Tank Maximum Volume (gal) 999999 Overall Height (ft) 0.49 Overall Height (in) 5.9 Overall Length (ft) 0.305 Overall Length (in) 3.66 Overall Width (ft) 0.333 Overall Width (in) 4 Product Type Tank Level Monitor (TLM) RF Communication (GHz) 0.85-0.9, 1.8-1.9 Type Level Sensor Vertical Tank Maximum Height (ft) 13 Vertical Tank Maximum Volume (gal) 999999 Weight (lb) 1.17
