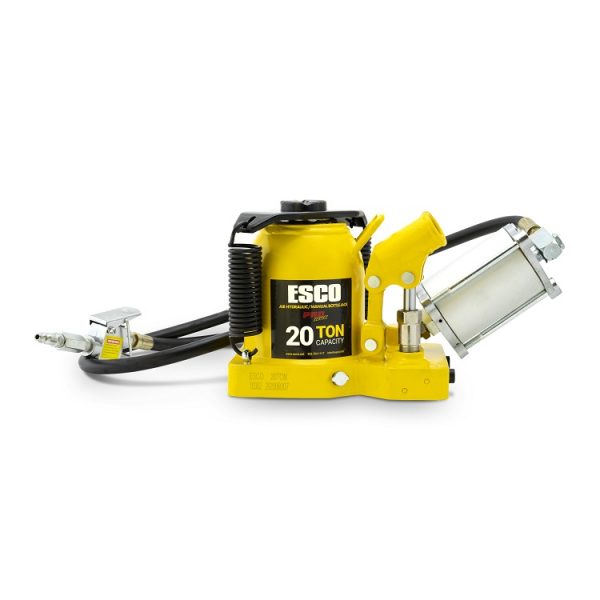

ESCO PRO SERIES 20 TON “SHORTY” AIR HYDRAULIC BOTTLE JACK 10382

Description The compact design makes these jacks great for multiple applications including Commercial Truck, Bus, Tractor & Farm Equipment, and much more. Chrome-plated piston for extra rust and corrosion resistance. Fitted with a safety valve to prevent overloading. Double spring design for controlled and safe descent while releasing pressure from the cylinder. Heat Treated Adjustable Extension Screw provides additional and precise height adjustments. Assists in not overextending cylinder to reach designed heights. Design to be operated using air or manually with included two-piece lifting/lowering handle. Includes 4 ft. swivel end air hose with easy to use handheld push-button air trigger. Air trigger includes 1/4 in. NPT fitted air inlet, in-line air filter (extends the life of air motor), and airflow latch- for easier constant airflow while raising of the jack to load. Fitted with a heavy-duty constructed chrome-plated air motor designed with wear-resistant parts to ensure longevity and dependability in any lifting application. Capacity 20 Ton (40,000 lbs.) Min. Height 7.125 in. Max. Height 12.625 in. Ram Travel 3.25 in. Screw Adjustment 2.5 in. Saddle Width 1.75 in. Base Thickness 1.25 in. Base Size L x W 8.25 x 5.75 in. Inner Package 15.125 x 7.875 x 8.125 in. Outer Package 15 x 8 x 8 in. Net Weight 34 lbs. Gross Weight 35 lbs. Air Inlet Fitting 1/4 in. NPT Air Pressure 110-125 psi Warranty 1-Year UPC 816904024864   Instruction Manual Product Sheet
