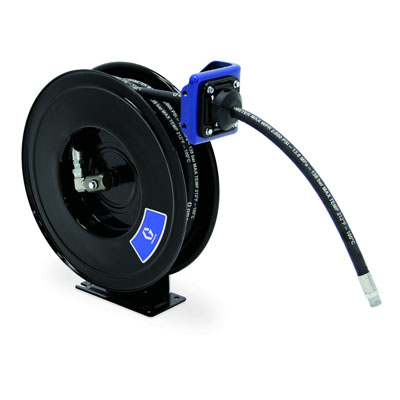

SDM65B – 1/2″x50′ Oil Hose Reel Standard Duty

Description SDX™ 20, Oil, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose, NPT, Overhead Mount, Metallic Blue Part Number: SDM65B Choose Graco’s flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it’s available in five colors With its durable metal spool and rigid pedestal frame, the compact SDX Series is ideal for indoor and limited outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks. Low-Friction Cartridge Swivel – Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs. Increased Spring Power – Every SDX oil hose reel recoils to the exact same assigned length for a clean, uniform look. Full-Flow Swivel – Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Adjustable Arm – Easily change the arm position for your application Large Hose Capacity with Small Profile – Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications Durable Finish – Baked-on enamel finish protects reel from corrosion Technical Specifications CONVERT TO METRIC Application Oil Color Metallic Blue Frame Type Single Pedestal Hose Inside Diameter (in) 1/2 Hose Length (ft) 50 Hose Reel Type Reel with Hose Includes Hose Yes Inlet Size (in) 1/2 Inlet Thread Gender Male Inlet Thread Type NPSM Maximum Temperature (°F) 190 Maximum Working Pressure (psi) 2000 Minimum Temperature (°F) -20 Model SDX Mount Location Overhead Mount Outlet Size (in) 1/2 Outlet Thread Gender Male Outlet Thread Type NPT Overall Height (in) 21.8 Overall Length (in) 19.2 Overall Width (in) 7 Recommended Environment Indoor, Limited Outdoor Recommended Fluid Type Oil Reel Thread Type NPT Series 20 Type Spring-Rewind Reel Wetted Parts Zinc-Plated Steel, Anodized Aluminum, Nitrile Rubber
