25M406- SD NON Preset Meter Flexible Extension

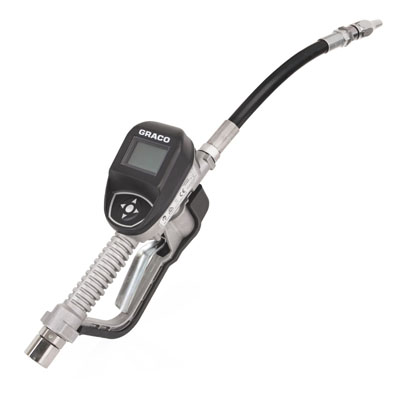

Description SDM8 Series Electronic Manual Oil Meter – Flexible Extension – 1/2 in. (13 mm) Inlet Part Number: 25M406 Graco’s premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions. Large, Intuitive Display—high-contrast display for low and bright light conditions Long valve life—cartridge spool valve specifically designed to reduce wear and reduce costly down time Ergonomic—four-finger trigger and easy-to-use button pad reduce worker fatigue Reliable—time-tested Graco engineering Durable – Thick cast aluminum body allows this meter to endure harsh, heavy-duty applications Long battery life—uses 4 AA easy-to-replace batteries Technical Specifications CONVERT TO METRIC Compatible Material Oil, ATF Construction Aluminum, Stainless Steel, PBT/PC, Zinc, Nitrile Rubber, CS Dispense Type Manual Display Type Electronic Extension Type Flexible Fluid Inlet Thread Gender Female Fluid Outlet Thread Gender Female Includes Nozzle, Flexible Extension Inlet Size (in) 1/2 Inlet Thread Type NPT Maximum Flow Rate (GPM) 8 Maximum Operating Temperature (°F) 158 Maximum Recorded Dispense 9999 Maximum Storage Temperature (°F) 158 Maximum Working Pressure (MPa) 10.3 Maximum Working Pressure (psi) 1500 Meter Accuracy (%) ±0.5 Meter Technology Oval Gear Metering Gun Weight (lb) 5.3 Minimum Flow Rate (GPM) 0.25 Minimum Operating Temperature (°F) 4 Model SDM8 Nozzle Type Oil Automatic Quick-Close Outlet Thread Type Straight Thread O-Ring Boss Overall Height (in) 5.75 Overall Length (in) 13 Overall Width (in) 3.75 Recommended Environment Indoor Trigger Lock Non-Locking Trigger Protection Type Guard Type Electronic Metered Dispense Valve Unit of Measure Quart, Pint, Gallon, Liter Valve Type Metered Warranty 5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts
